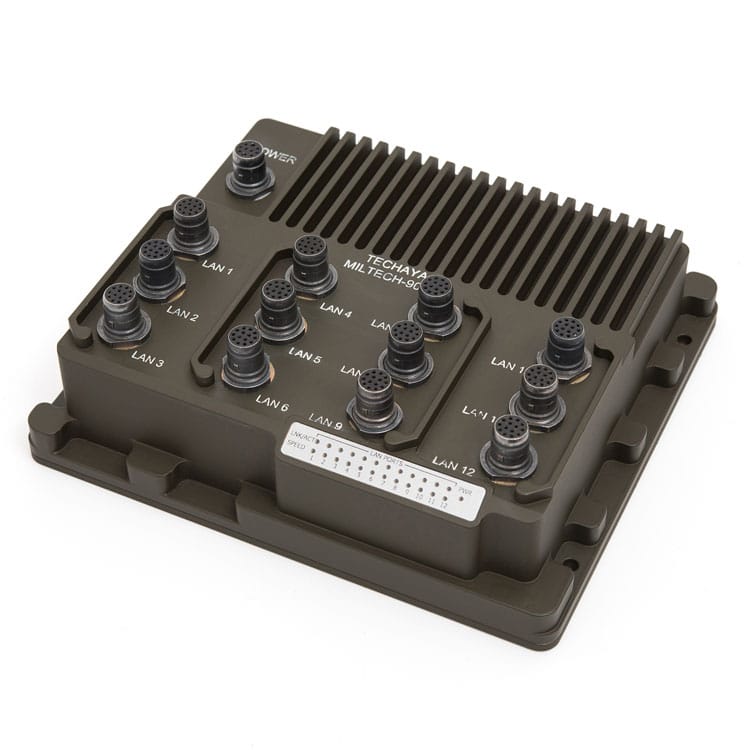

Small Military Gigabit Ethernet Router, 12 Port

BRAND: Techaya

MODEL#: MILTECH 9012

The MILTECH 9012 is a small form factor military gigabit Ethernet router specifically designed for battlefield C4ISR, voice, video, sensor data acquisition, and communications in platforms that require LAN/WAN connectivity.

Download Data Sheets Here

milpower-9012–Data Sheet–Rev.-.pdf

Related Accessories

DESCRIPTION

The MILTECH 9012 is a small form factor military gigabit Ethernet router specifically designed for battlefield C4ISR, voice, video, sensor data acquisition, and communications in platforms that require LAN/WAN connectivity. It features both L2/L3 network switching and routing capabilities, including virtual LANS (VLANS), traffic prioritization/QoS, IPv4/IPv6 dynamic routing support, and bandwidth aggregation. It supports all the latest networking protocols for redundancy, security, multicast, and management.

The MILTECH 9012 offers the best combination of size, weight, power and cost (SWaP-C) in the industry, saving valuable real estate for devices that make mobile platforms highly effective. No other military-gigabit Ethernet router offers such functionality in such a small package. The 9012 is a member of the MILTECH 9012 family that offers flexible alternatives for LAN, LAN/WAN, and customizable networking. All family members are MIL-STD, fully managed, and military grade, with 12 triple-speed (10/100/1000Mbps) ports. The MILTECH 9012 gigabit-rate transmission and MIL-STD-1275 28VDC power bus make it instantly compatible with network device and power systems.

Specifications

Product ModelMILTECH 9012
ManagementManaged
Ports12 x 10/100/1000
IngressIP67
DIMS (L x W x H)166.4 mm x 144 mm x 56 mm
ConnectorsPower: SCE2-B-76A07-10ASN
LAN : SCE2-B-76A07-14SN
Weight970 g
Operating Temp-45C to +85C
MIL-STDMIL-STD-810F/G/M, MIL-STD-461E, MIL-STD-1275, MIL-STD-704A
Power18-72VDC, 13W (Typical)



APPLICATIONS

GROUND

UAV
