Rugged POE+ Fast Ethernet Unmanaged Switch, 8 Port

BRAND: Techaya

Part #: MILTECH 610-POE

The MILTECH 610-POE is a rugged MIL-STD POE+ Fast Ethernet switch, supporting up to 63W per port with full 802.3af and 802.3at compliance.

Placeholder Image
DESCRIPTION

The MILTECH 610-POE is the only military-grade PoE switch on the market today that supports 30W of PoE on all 8 Fast Ethernet 10/100, up to a maximum power budget of 330 watts total. It supports both 802.3af and 802.3at standard devices and supports COTS guidelines for PoE-enabled cameras, WiFi access points, mesh nodes and other devices.

Techaya’s MILTECH™ 610-PoE military-grade PoE+ simplifies cabling and reduces space requirements in mobile Ethernet-equipped platforms, such as vetronic, ground vehicles and aerial applications where traditional power sources have limited availability. Power over Ethernet (PoE) allows a single CAT 5 Ethernet cable connected to a data port to provide both data connection and electrical power to these networked devices.

Using sealed MIL-D-38999 circular connectors, it meets MIL-STD-810F airborne and ground environmental compliance for high physical and network reliability.

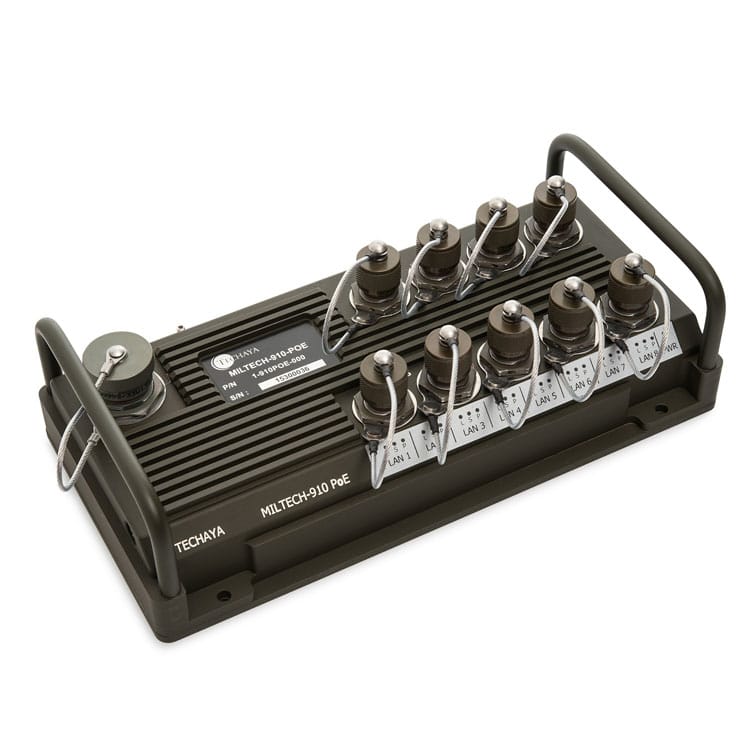

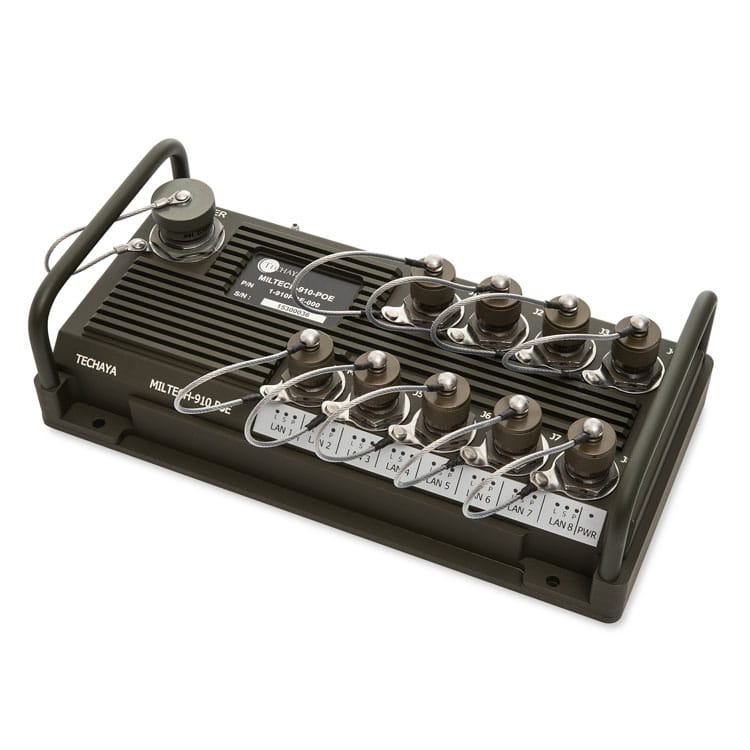

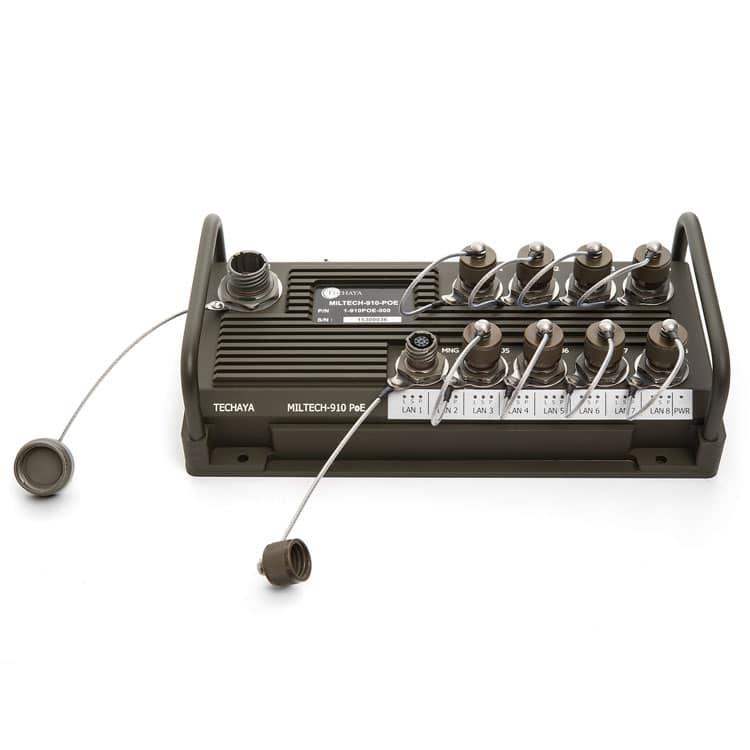

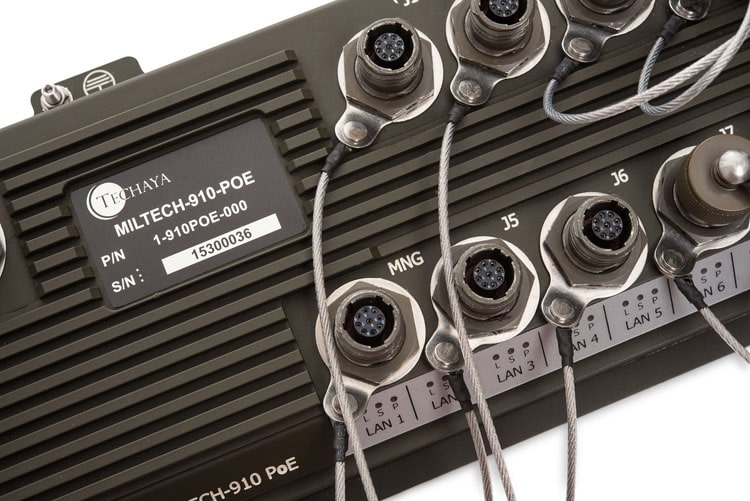

*Note: 910-POE and 610-POE have identical physical features and thus the picture is of a 910-POE.

SPECIFICATIONS
Product ModelMILTECH 610-POE
ManagementUnmanaged or Managed (SKU dependent)
Ports8 x 10/100 PoE+
IngressIP67
DIMS (L x W x H)269 mm x 133 mm x 71 mm
ConnectorsPower:38999/24WA98PA
LAN: 38999/24WA35SN
Weight1.2 Kg
Operating Temp-40C to +85C
MIL-STDMIL-STD-810F/G/M, MIL-STD-461E, MIL-STD-1275, MIL-STD-704A
Power18-32 VDC, 6W (Typical)
Power (POE)Total POE Budget = 240W
Max power consumption per port = 30W
IEEE 802.3af, 803.2at compliant
Dynamic power allocation
POE priority per port
No power degradation @ +85C
Operates in 24VDC, no need for additional 48VDC input



APPLICATIONS
GROUND

Ethernet in Ground applications diagram
