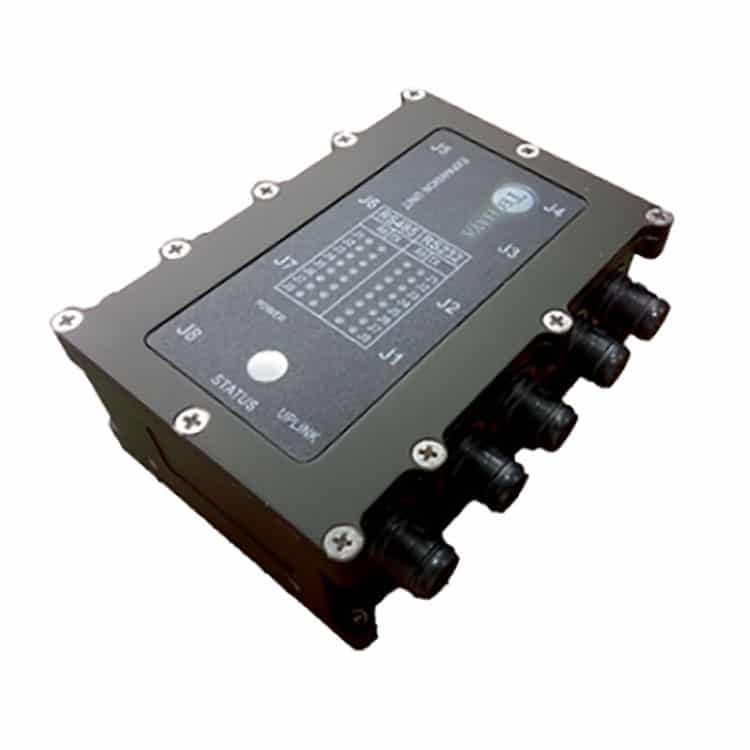

MILTECH 16SER - MIL-STD IP68 rugged military-grade Serial over USB unit

BRAND: Techaya

Part #: MILTECH 16SER

The Portable Rugged Serial unit was developed specifically for the new cyber threats available in today’s networks, providing new security features and capabilities for protecting critical systems. Developed for portable military and harsh environment applications, the MILTECH 16SER features mechanical packaging enhancements designed for MIL-STD-810F airborne and ground environmental compliance and high reliability.

Placeholder Image
DESCRIPTION

The MILTECH 16SER is a military-grade, rugged serial over USB unit. It enables one way data transmission for securing information breach from classified networks to unclassified domains. With 16 serial ports (8 x RS232 over USB + 8 x RS485/422 over USB), the 16SER features internal Enable/Disable TX/RX switches that controls which way data can flow to and from serial-connected devices. Remote software control for the switches is available through 12C. Up to 5 devices can be cascaded for a maximum of 80 serial interfaces over a single USB port. The MILTECH 16SER meets MIL-STD-461, MIL-STD-810, MIL-STD-1275, MIL-STD-704, IP68.

The MILTECH 16SER serves as a robust commercial off-the-shelf (COTS) solution for rugged Serial connectivity, which can be used in a wide range of military and commercial applications, including: UAVs,  Land autonomous vehicles (UGVs), Robots, and Mobile equipment fielded in harsh environments.

SPECIFICATIONS
Product Model MILTECH 16SER
Management N/A
Ports 8 x RS232 interfaces over USB + 8 x RS485/422 interfaces over USB; 2 X USB2 Expansion ports
IMMERSION IP68
DIMS 100 mm x 88.9 mm x 40 mm (inc connectors)
Connector Power + J1 – J8: SCE2 + Uplink: SCE2
Weight 390 g
Operating Temp -45°C to +85°C
MIL-STD MIL-STD-810F/G/M, MIL-STD-461E
Power 24VDC (16-36V), 4W (Typical up to 16.25W w/ Aux Power)
APPLICATIONS
SOLDIER-CARRY

Ethernet in Soldier Carry applications diagram

UAV

Ethernet in UAV applications diagram
