Military Managed 12 Ports Gigabit Switch Router

BRAND: Techaya

Part #: MILTECH 9022

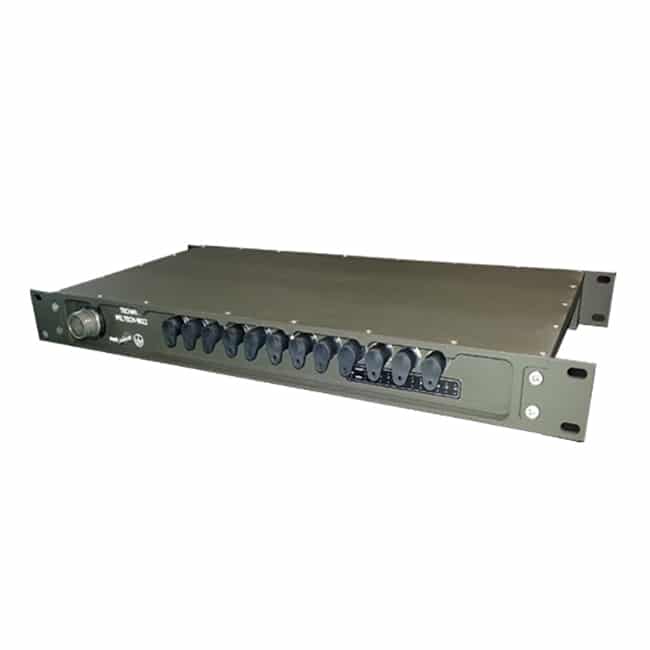

THE MILTECH 9022 IS A 1U RACK-MOUNTABLE ETHERNET SWITCH WITH LAYER 3 DYNAMIC ROUTING FUNCTIONALITY

  • Download MILTECH 9022 Datasheet
Placeholder Image
DESCRIPTION

The MILTECH 9022 is a MIL-STD Fully managed Military-grade network switch router with 12 triple speed (10/100/1000) ports. It is compatible with all the newest military industry network protocols for redundant link topology, security, multicast and management requirements including virtual LANS (VLANS), traffic prioritization/QoS, IPv4/IPv6 support, and bandwidth aggregation.

With a 1U footprint, the MILTECH 9022 supports 24VDC power with an optional redundant power supply for optimal system survivability. It meets MIL-STD-810F, MIL-STD-461E, MIL-STD-1275B airborne, ground mobile environmental, EMI/RFI compliance for high reliability.

SPECIFICATIONS
Product Model MILTECH 9022
Management Managed
Ports 12 x 10/100/1000
Ingress IP67
DIMS (L x W x H) 440 mm x 370 mm x 44 mm
Connectors Power: D38949/24WC04PN, LAN: SCE2-B-76A07-14SN
Weight 3.1 Kg
Operating Temp -40°C to +75°C
MIL-STD MIL-STD-810F/G/M, MIL-STD-461E, MIL-STD-1275, MIL-STD-704A
Power 18-32VDC, 20W (Typical) or 230VAC
APPLICATIONS
GROUND

Miltech 610 and Miltech 1000 ground application connectivity diagram

MARINE

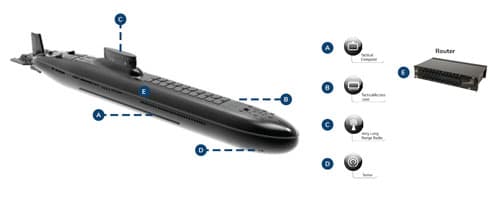

Ethernet in naval applications
