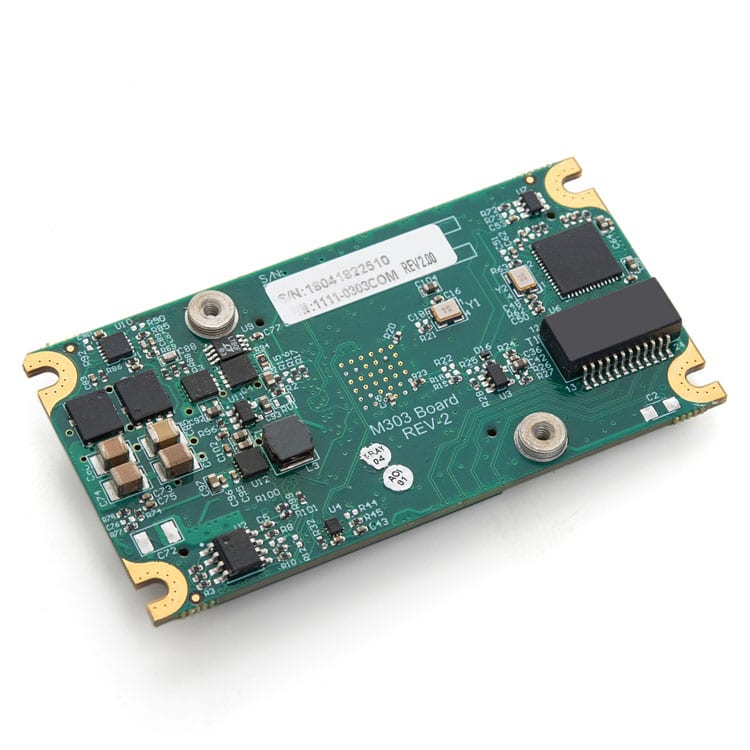

Military Grade USB 3.1 Smart Hub On Board (HOB)

BRAND: Techaya

MODEL#: MILTECH 300

The MILTECH 300 HoB is a USB 3.1 compatible USB hub on board (HoB) that has five (5) USB 3.1 ports, one (1) gigabit Ethernet port, and a dedicated IO port.

Download Data Sheets Here

milpower-300–Data Sheet–Rev.-.pdf

DESCRIPTION

The MILTECH 300 HoB is a USB 3.1 compatible USB hub on board (HoB) that has five (5) USB 3.1 ports, one (1) gigabit Ethernet port, and a dedicated IO port. This unique board-level solution is perfect for space-constrained or chassis-based environments. It provides connectivity between USB 3.0 devices while delivering robust power management and charging functions. The internal Ethernet interface allows communication with upstream devices over a standard Ethernet network, further extending the flexibility of the hub and attached USB devices.

The MILTECH 303 is perfect for fixed wing / rotor aircraft, hardened portable enclosures and rugged commercial applications. A wide voltage range of 12-28VDC and up to 2A of downstream power for each port, let’s if fit seamlessly in to a wide variety of platforms with varying power sources and still provide a consistent power to devices that require 5VDC via a USB interface. It supports the four most popular battery charging profiles: Dedicated Charging Port (DCP), Downstream Port (CDP), Standard Downstream Port (SDP) and custom profiles via SMBus or OT.

The rugged MILTECH 300 HoB is conformally coated to stand up against debris and vibration and meets MIL-STD-810F standards when installed in an appropriate enclosure.

Specifications

Product ModelMILTECH 300
Ports

• Port 1 USB3.1/USB2 upstream port
• Port 2-6 USB3.1/USB2 downstream ports
• Port 7 Ethernet 10/100/1000BT port via USB to LAN Bridge
• Port 8 IO port for I2C/SPI/GPIO/External Power Input

DIMS (L x W x H)

73mm x 38 mm x 11 mm

Connectors

2 x Samtec QTE-028-01-L-D-DP-A-K

Weight

24.2g

Operating Temp

-40C to +85C

MIL-STD



Power• 5VDC (USB) INPUT, Upstream USB Port # 1, or 12-28VDC external power source for high power applications
• Output 5VDC Aggregated up to 15A, up to 2A per port

APPLICATIONS

SOLDIER-CARRY

UAV
