1+ 7 Miniature Military rugged USB HUB

BRAND: Techaya

Part #: MILTECH 306

MILTECH™ 306 is a MIL-STD rugged, military-grade USB hub, offering 7+1 USB 2.0 Ports and is intended for use in command post and man-packable applications.

  • Download MILTECH 306 Datasheet
Placeholder Image
Related Accessories
  • Picture of MILTECH306-Downstream+

    MILTECH306-Downstream+

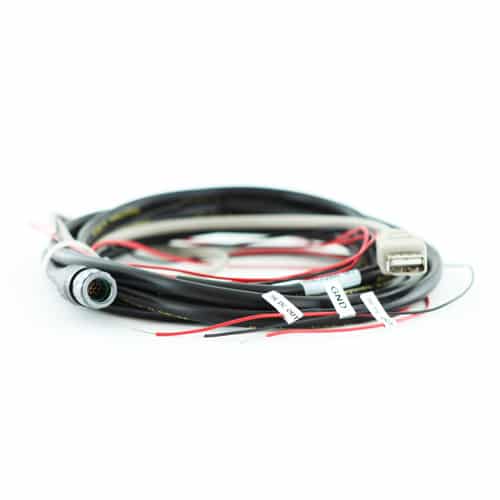

    CBL306LN+

  • Picture of MILTECH306-Upstream

    MILTECH306-Upstream

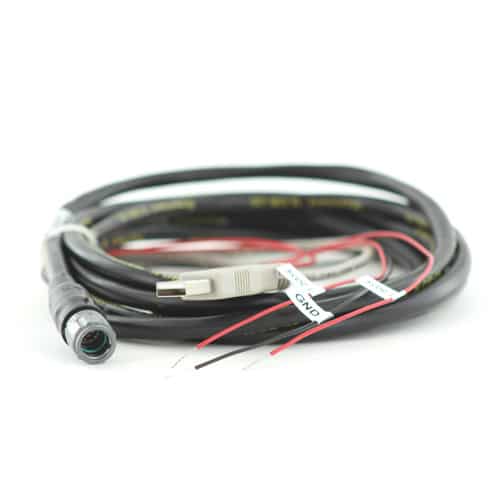

    CBL306PWR

DESCRIPTION

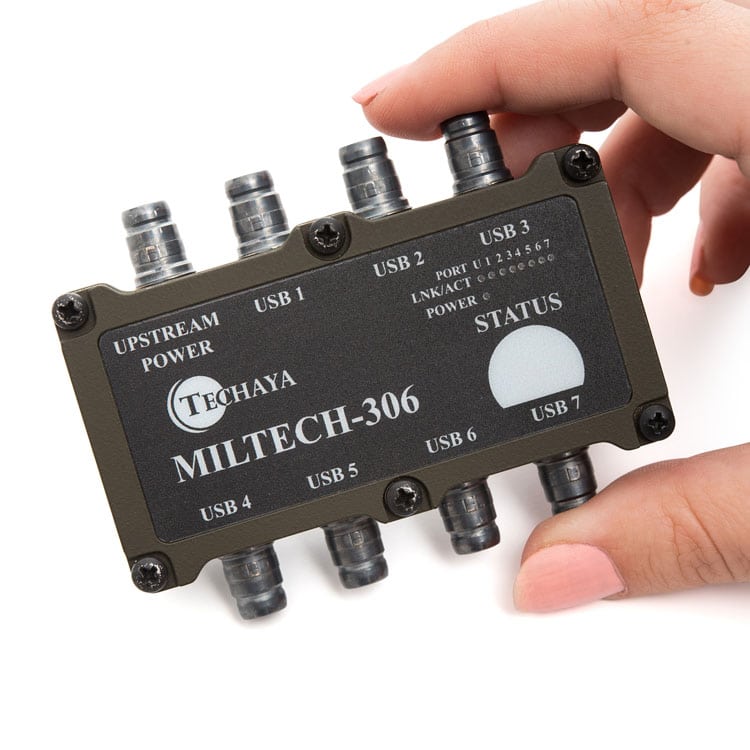

MILTECH™ 306 is a MIL-STD rugged, military-grade USB hub, offering 7+1 USB 2.0 Ports. The portable military grade rugged USB hub is intended for command post and man-packable applications. Leveraging best-in-class technology from Techaya, the MILTECH306 serves as a robust solution for providing USB connectivity computing devices, heads-up displays, radios and other future-soldier devices.

With the best combination of size, weight, power and cost (SWaP-C) in the industry, the MILTECH 306 reduces load on the soldier, providing more space for equipment that increases effectiveness and survivability. The MILTECH 306 operates on readily available 5VDC power and may easily be powered from computers and other devices with USB ports.

SPECIFICATIONS
Product Model MILTECH 306
Management
Ports 1 + 7 USB
Ingress IP68
DIMS (L x W x H) 82.2 mm x 64.1 mm x 25.9 mm (inc connectors)
Connectors Power + LAN : SCE2
Weight 140 g
Operating Temp -40C to +75C
MIL-STD MIL-STD-810F/G/M, MIL-STD-461E
Power 5VDC via USB, 2W (Typical up to 16.25W w/ Aux Power)
APPLICATIONS
SOLDIER-CARRY

Dismounted soldier, Connectivity Diagram, TALOS, Net Warrior

UAV

Unmanned System Ethernet Connectivity, UAV Ethernet Switch, UAS
