Compact, Managed Gigabit Ethernet Switch

BRAND: Techaya

Part #: MILTECH 907

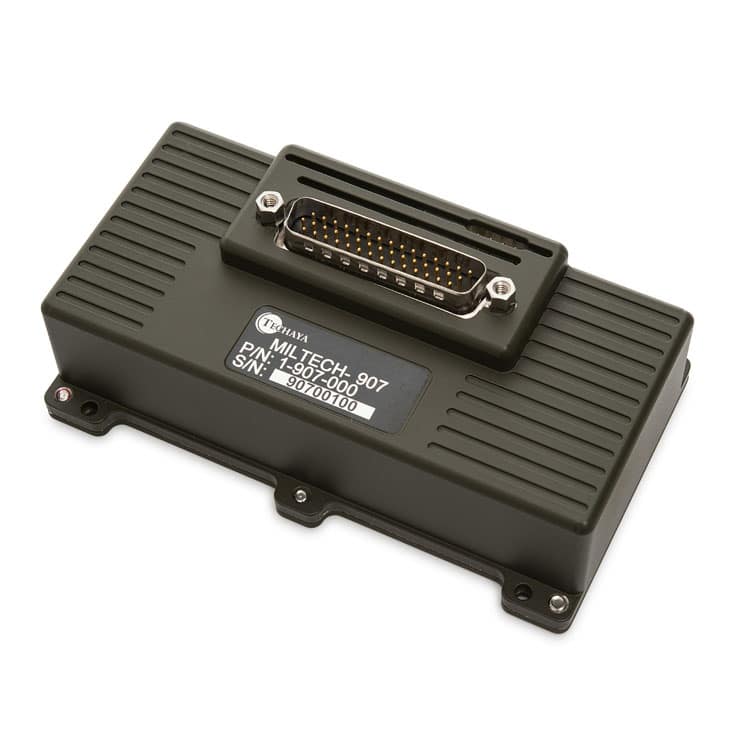

The MILTECH 907 is a MIL-STD, fully managed military grade network switch designed for environments where space is extremely limited.

  • Download MILTECH 907 Datasheet
Placeholder Image
DESCRIPTION

The MILTECH 907 is a MIL-STD, fully managed military grade network switch designed for environments such as aerial pods, UAVs, small ground vehicles and robotics where space is extremely limited. It has 5 triple-speed(10/100/1000Mbps) ports delivered through a single top-mount, high density D-Type 44 pin connector.

Advanced network features include switching protocols, virtual LANS (VLANS), traffic prioritization (QoS), and bandwidth aggregation. It can be remotely managed to optimize communications and prioritize critical information traffic.

The unit has been especially hardened to improve ingress, impact, and shock/vibration protection and meets MIL-STD-461E and MIL-STD-810 810 F/GM , MIL-STD-1275/704 standards. Voltage input is 24Vdc and it consumes a maximum of 5W of power.

SPECIFICATIONS
Product Model MILTECH 907
Management Managed
Ports 5 x  10/100 /100
Ingress
DIMS (L x W x H) 113 mm x 54 mm x 40 mm (not inc connectors)
Connectors Power + LAN, 3 Separate pins for RS232 management, LED Indication Per Port (Link/Activity)
Weight 250 g
Operating Temp -45C to +85C
MIL-STD

MIL-STD-461E, MIL-STD-810F GM

Power

24Vdc Nominal (16-36V), 5W Max.

APPLICATIONS
GROUND

Miltech 610 and Miltech 1000 ground application connectivity diagram

UAV

Unmanned System Ethernet Connectivity, UAV Ethernet Switch, UAS
