Rugged POE+ Gigabit Ethernet Managed Switch, 8 Port

BRAND: Techaya

Part #: MILTECH 910-POE

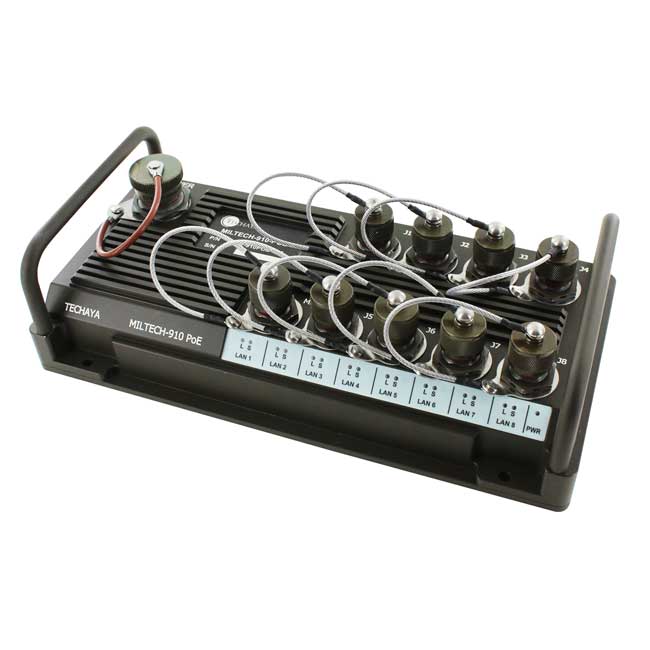

The MILTECH 910-POE is a rugged MIL-STD POE+ gigabit Ethernet switch, supporting up to 60W per port with full 802.3af and 802.3at compliance.

  • Download MILTECH 910PoE Datasheet
Placeholder Image
DESCRIPTION

Power over Ethernet (PoE) allows a single CAT 5 Ethernet cable connected to a data port to provide both data connection and electrical power to networked pieces of equipment such as sensors, IP video cameras and even wireless mesh nodes. Techaya’s MILTECH™ 910-PoE military-grade PoE+ simplifies cabling and reduces space requirements in mobile Ethernet-equipped platforms, such as vetronic, ground vehicles and aerial applications where traditional power sources have limited availability.

This unique Ethernet switch is the only military-grade PoE switch on the market today that supports 30W of PoE on all 8 gigibit Ethernet 10/100/1000 ports, but can be configured to support up to 60 W of PoE on each port up to a maximum power budget of 330 watts total. The MILTECH 910 PoE supports both 802.3af and 802.3at standard devices and supports COTS guidelines for PoE-enabled cameras, WiFi access points, mesh nodes and other devices.

Leveraging best-in-class switching technology from Techaya, the MILTECH™ 910-PoE is fully managed with advanced network features such as switching protocols, virtual LANS (VLANS), traffic prioritization, and bandwidth aggregation.

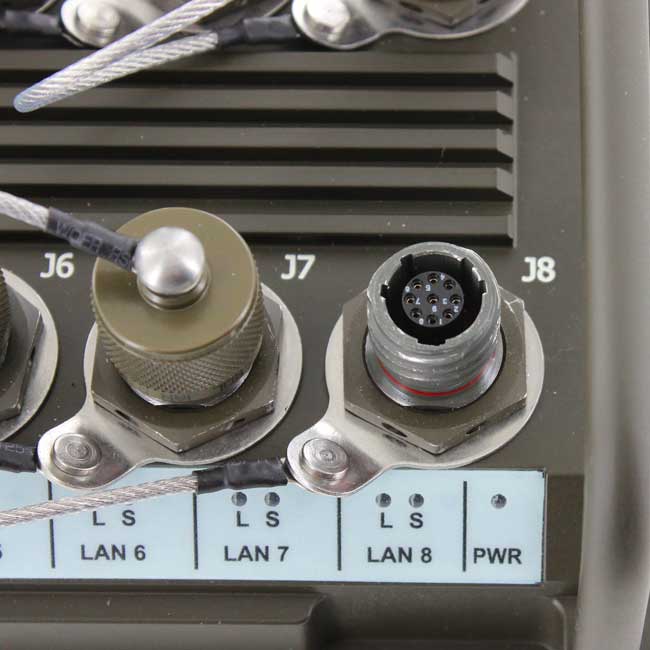

Using sealed MIL -D-38999 circular connectors, it meets MIL-STD-810F airborne and ground environmental compliance for high physical and network reliability.

SPECIFICATIONS
Product Model MILTECH 910-POE
Management Managed
Ports 8 x 10/100/1000
Ingress IP67
DIMS (L x W x H) 269 mm x 133 mm x 71 mm
Connectors Power + LAN : MIL-D-38999
Weight 1.2 Kg
Operating Temp -40C to +85C
MIL-STD MIL-STD-810F/G/M, MIL-STD-461E, MIL-STD-1275, MIL-STD-704A
Power 18-32VDC, 7W (Typical)
Power (POE) Total POE Budget = 330W
Max power consumption per port = 60W
IEEE 802.3af, 803.2at compliant
Dynamic power allocation
POE priority per port
No power degradation @ +85C
Operates in 24VDC, no need for additional 48VDC input



APPLICATIONS
GROUND

Miltech 610 and Miltech 1000 ground application connectivity diagram
