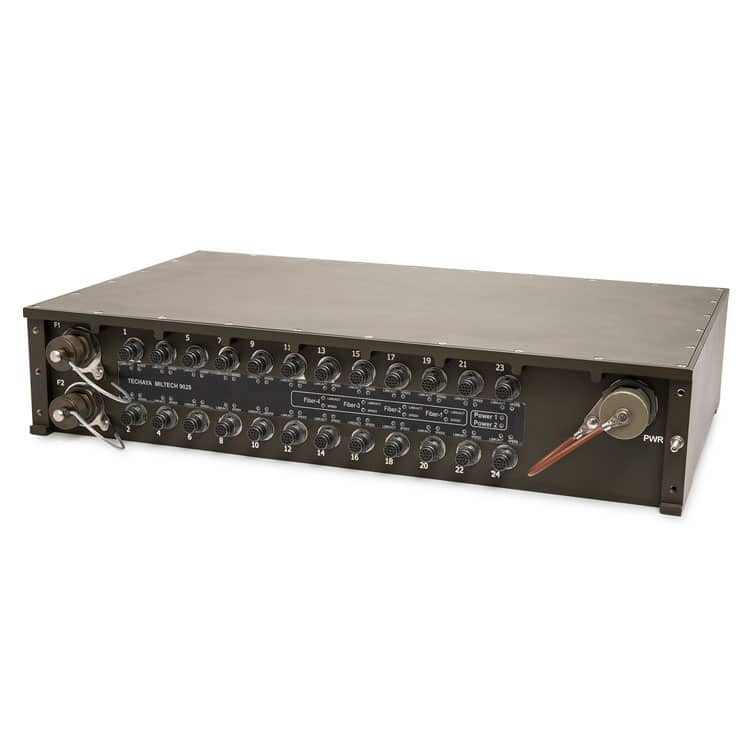

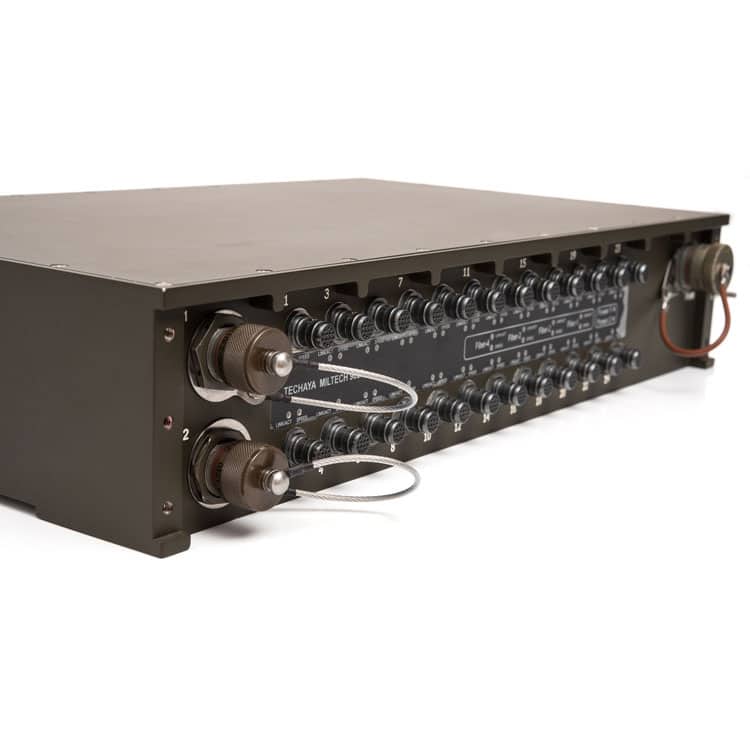

Rugged Military 10GE Router

BRAND: Techaya

Part #: MILTECH 9028

The MILTECH 9028 rugged military 10GE router is designed for battlefield C4ISR, voice, video, and sensor communications that handle real-time data.

  • Download MILTECH 9028 Datasheet
Placeholder Image
Related Accessories
  • Picture of 3M LAN Harness

    3M LAN Harness

    CBL9028LAN

  • Picture of 3M Power Harness

    3M Power Harness

    CBL9012PWR/p>

  • Picture of 3M LAN and Console Harness, SCE2 to RJ45 + DB9

    3M LAN and Console Harness, SCE2 to RJ45 + DB9

    CBL9028LAN+MNG

DESCRIPTION

The MILTECH 9028 is a rugged military 10GE router specifically designed for battlefield C4ISR, voice, video, and sensor data acquisition, and communications in military platforms that handle large quantities of real-time data. With 24 triple-speed (10/100/1000Mbps) ports and 4 10Gbps fiber optic ports, the MILTECH 9028 is ideal for mobile platforms and shipboard systems that deal with high resolution video and other data-intensive signaling.

The MILTECH 9028 rugged military-grade 10GE router features both L2/L3 network switching and routing capabilities, including virtual LANS (VLANS), traffic prioritization/QoS, IPv4/IPv6 dynamic routing, and bandwidth aggregation. It supports all the latest networking protocols for redundancy, security, multicast, and management.

The MILTECH 9028 offers the best performance and combination of size, weight, and power (SWaP) in the industry, saving valuable real estate for devices that make mobile platforms highly effective.  Its 1GE/10GE transmission speeds and 24VDC power make it instantly compatible with network devices and power systems. An optional redundant power connection adds to overall system survivability.

SPECIFICATIONS
Product Model MILTECH 9028
Management Managed
Ports 24 x 10/100/1000 + 4 x 10GE
Ingress IP67
DIMS (L x W x H) 440 mm x 250 mm x 88 mm
Connectors Power : MIL-D-38999, LAN : SCE2 & MIL-D-38999
Weight 5.5 Kg
Operating Temp -40C to +75C
MIL-STD MIL-STD-810F/G/M, MIL-STD-461E, MIL-STD-1275, MIL-STD-704A
Power 18-32VDC, 20W (Typical)
