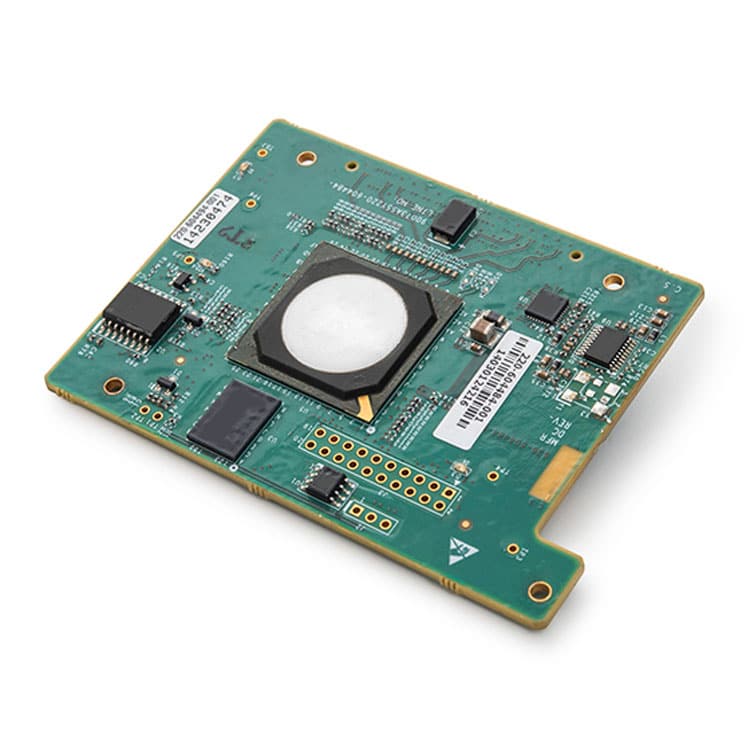

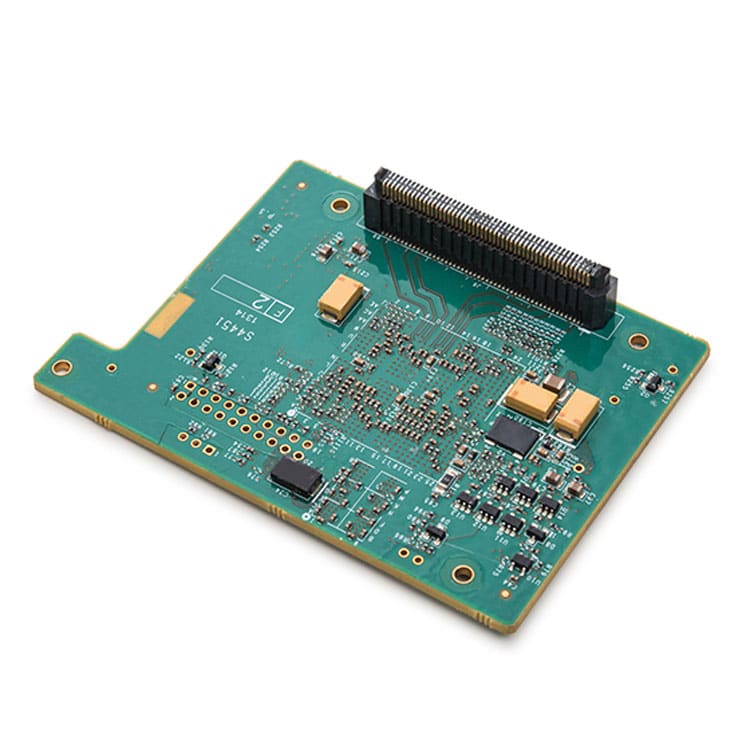

PCB level Ethernet Switch, 1GE Managed 24-Port Ethernet Router/Switch + 4 ports 10G

BRAND: Techaya

Part #: MILTECH 9128

The MILTECH 9128 is specifically designed for traffic management of advanced optics with ultra-high resolution on rugged military mobile platforms.

  • Download MILTECH 9128 Datasheet
Placeholder Image
DESCRIPTION

The MILTECH 9128 is designed to simplify the complex traffic management of advanced optics with ultra-high megapixel resolution on rugged manned and unmanned military and civilian sensitive mobile, tactical, airborne, and vehicle platforms for situational awareness and network-centric operations. By combining both Layer 2 Ethernet switching functionality and Layer 3 dynamic routing with four 10 GbE ports and 24 triple-speed (10/100/1000Mbps) ports it is ideal for aggregating traffic from dozens of IP-based devices to connect to processing computers.

Advanced network routing features include support for virtual LANS (VLANS), traffic prioritization (QoS), bandwidth aggregation, dynamic routing (RIPV1,V2, OSPF V2/V3, Multicast Routing, VRRP, ECMP Routing) and full IPv6.

With the industry’s smallest footprint, the MILTECH 9124 measures only 3.55″ by 3.55″ for significant SWAP-C advantage over traditional pre-packaged military-grade solutions. With board-to-board connectors, it can easily be integrated as a module-based network building block in any military-grade communications platform. It is conformally coated and designed to withstand working temperatures of -40°C to +85°C and will comply with MIL-STD-810 and MIL-STD461when incorporated in a suitable enclosure. The MILTECH 9124 runs on power input of 3.3VDC with a maximum power consumption of 20 watts.

SPECIFICATIONS
Product Model MILTECH 9128
Management Managed
Ports 24 x 10/100/1000 + 4 x 10GbE
Ingress IP67
DIMS (L x W x H) 90 mm x 90 mm x 5 mm
Connectors Board to board connector
Weight 52g
Operating Temp -40C to +85C (-40F to +185F) Cold Start-Up
MIL-STD MIL-STD-461E, MIL-STD-810F GM
Power 3.3VDC, 25W (Typical)
APPLICATIONS
GROUND

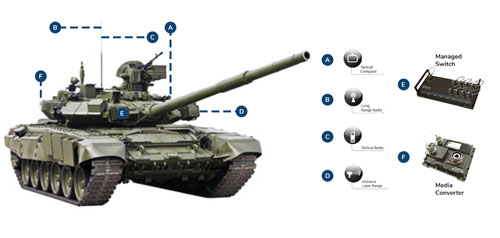

Miltech 610 and Miltech 1000 ground application connectivity diagram

UAV

Unmanned System Ethernet Connectivity, UAV Ethernet Switch, UAS
