Military Gigabit Ethernet Managed Switch, 8 Port

BRAND: Techaya

Part #: MILTECH 908

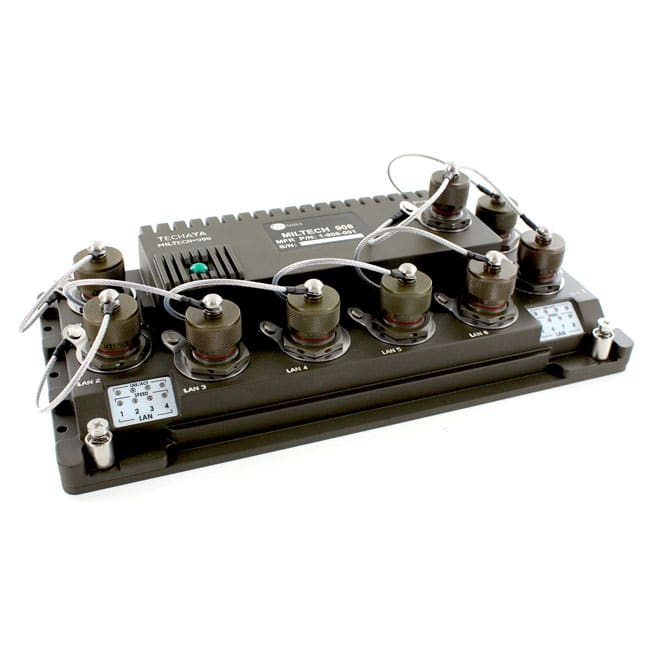

The MILTECH 908 is an eight port military-grade managed gigabit Ethernet switch with eight individual MIL-D-38999 connectors.

  • Download MILTECH 908 Datasheet
Placeholder Image
DESCRIPTION

The MILTECH 908 is a eight port military-grade managed gigabit Ethernet switch with eight individual MIL-D-38999 connectors. It is compatible with all the newest industry network protocols for redundant link topology, security, multicast and management requirements. Leveraging best-in-class switching technology from Techaya, the MILTECH™ 908 serves as a robust COTS solution for providing local area network (LAN) connectivity to IP-enabled computing and net-centric devices in ground vehicles, naval vessels and harsh facility applications.

Developed specifically for military and harsh ground vehicle applications, it features mechanical packaging enhancements designed for MIL-STD-810F airborne and ground environmental compliance and high reliability. The unit has been especially hardened to improve ingress, impact, and shock/vibration protection, and all moving parts have been eliminated through passive cooling.

SPECIFICATIONS
Product Model MILTECH 908
Management Managed
Ports 8 x 10/100/1000
Ingress IP67
DIMS (L x W x H) 210 mm x 136 mm x 44.4 mm

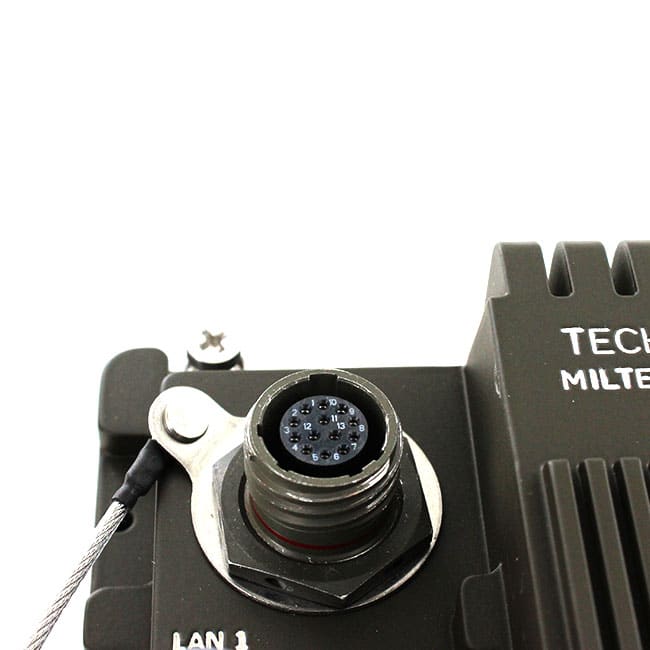

Connectors Power + LAN : MIL-D-38999
Weight 1.1 Kg
Operating Temp -40C to +75C
MIL-STD MIL-STD-810F/G/M, MIL-STD-461E, MIL-STD-1275, MIL-STD-704A
Power 18-32VDC, 7W (Typical)
APPLICATIONS
GROUND

Miltech 610 and Miltech 1000 ground application connectivity diagram
