Military Fast Ethernet Unmanaged Switch, 8 Port

BRAND: Techaya

Part #: MILTECH 610, 708

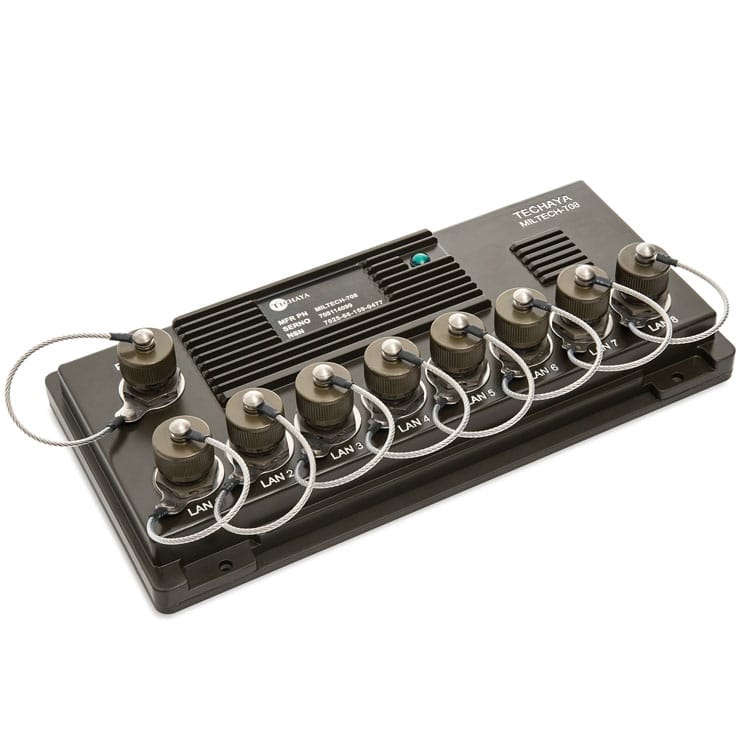

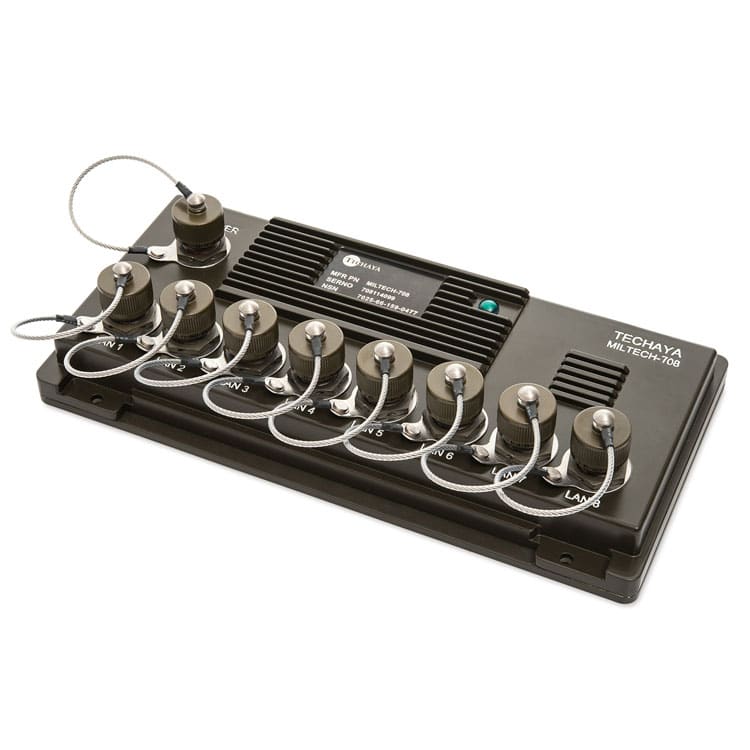

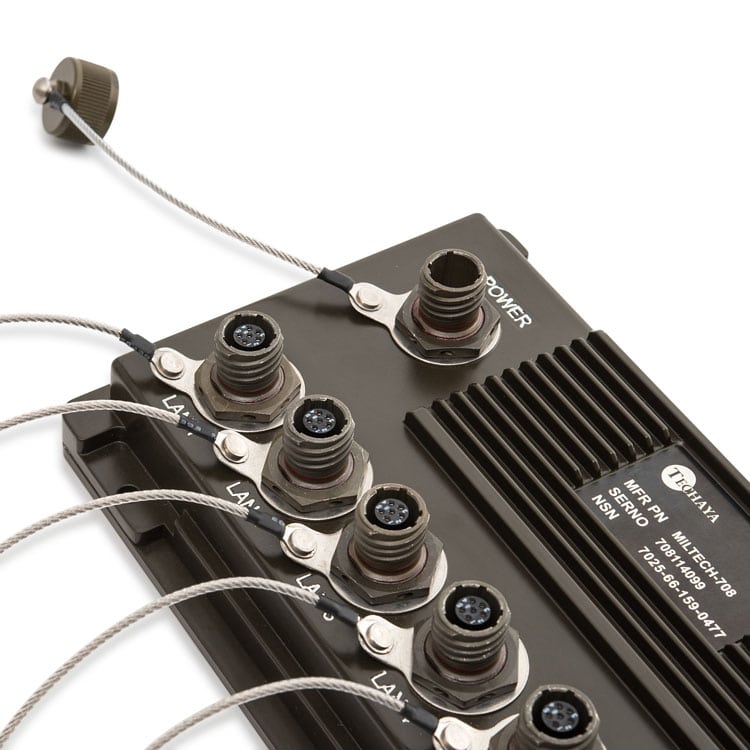

The MILTECH 708 and 610 are 8 port IP67 Fast Ethernet switches ideal for battlefield C4ISR, voice, video, sensor data acquisition, and communications.

  • Download MILTECH 610PoE Datasheet
  • Download MILTECH 708 Datasheet
Placeholder Image
DESCRIPTION

The MILTECH 708 and 610 are IP67 Fast Ethernet switches which are ideal for battlefield C4ISR, voice, video, and sensor data acquisition, and communications in military platforms. Their eight 10/100Mbps ports are plug-n-play with all Ethernet equipment and provide network connectivity for most Ethernet devices. The MILTECH™ 708 and 610 serve as robust IP67 Fast Ethernet switches for providing unmanaged local area network (LAN) connectivity to IP -enabled computing and net-centric devices. The MILTECH 610 is equipped with 8 LED indicator lights for easy observation of link status on each port.

Developed for military and harsh environment applications, the both switches feature mechanical packaging enhancements designed for MIL -STD-810F airborne and ground environmental compliance and high reliability. The units has been especially hardened to improve ingress, impact, and shock/vibration protection. Passive cooling helps to eliminate all moving parts.



SPECIFICATIONS
Product Model MILTECH 610
Management Unmanaged
Ports 8 x 10/100
Ingress IP67
DIMS (L x W x H) 269 mm x 133 mm x 65 mm
Connectors Power + LAN : MIL-D-38999
Weight 1.5 Kg
Operating Temp -40C to +75C
MIL-STD MIL-STD-810F/G/M, MIL-STD-461E, MIL-STD-1275, MIL-STD-704A
Power 18-32VDC, 2.8W (Typical)
APPLICATIONS
GROUND

Miltech 610 and Miltech 1000 ground application connectivity diagram
