64GB MIL-STD USB 3.0 Rugged Flash Drive

BRAND: Techaya

Part #: MILTECH M64

Techaya has created the first rugged USB 3.0 Flash Drive to survive MIL-STD-810, include RAID 0 for faster read/write speeds and has digital IO for remote activated secure erase of the device.

  • Download MILTECH M64 Datasheet
Placeholder Image



DESCRIPTION

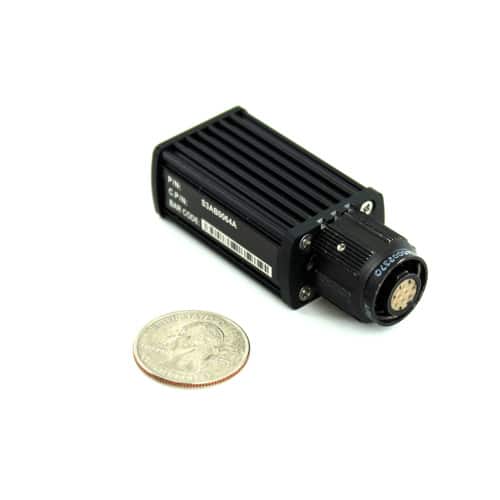

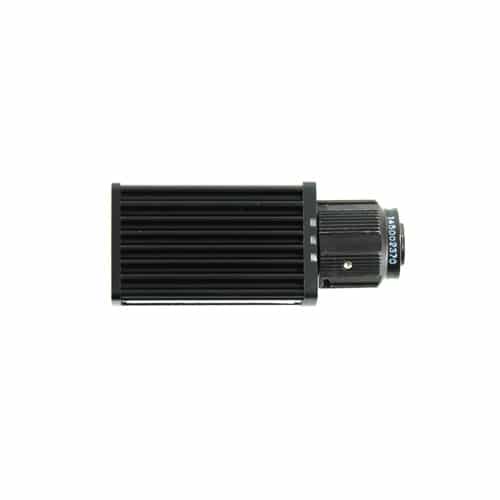

The MILTECH M64 the industry’s only military-grade, rugged IP68 rated 64 GB USB 3.0 portable local data storage drive with USB 2.0 backward compatibility. It is ideal for securely uploading data to or downloading data from computers and storage devices on defense and combat systems such as:

• Missiles
• Ground control stations
• Combat ground, air and marine vehicles

For the highest level of data security and preventing data breaches, the M64 allows secure erase and read/write indication via an external GPIO. An optional internal battery provides the ability self-powered secure erase, either at the GPIO or via a remote trigger.

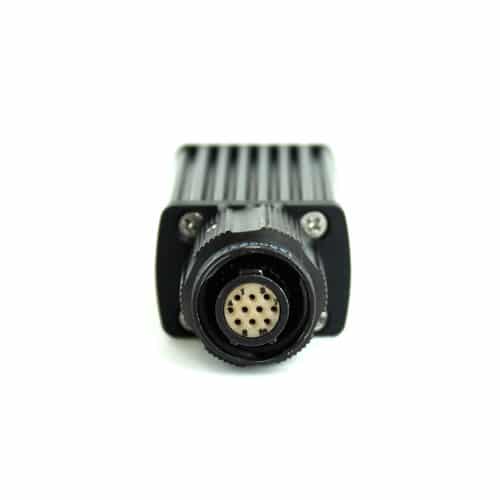

For easy operation and placement in the field and mobile environments, the pin shell has a scoop-proof design that prevents pins from being bent or contacts from being electrically shorted during mating. Added polarity helps guide insertion in places when the data source/destination is not easily viewed.

Designed to meet MIL-STD-81OF airborne and ground environmental compliance the MILTECH M64 delivers high reliability and durability. Leveraging best-in-class technology from Techaya, the MILTECH M64 serves as a robust commercial off-the-shelf (COTS) solution for rugged and secure USB storage.

SPECIFICATIONS
Product Model MILTECH M64
Capacity 64GB
Features Secure erase & status indication via GPIO, Increased write speed via RAID-0
Ingress IP67
DIMS (L x W x H) 65 mm x 28 mm x 19 mm
Connectors Amphenol 805 series, 10 pin
Weight 65 g
Operating Temp -40C to +85C
MIL-STD MIL-STD-810F/G/GM, MIL-STD-461E
Power USB BUS



APPLICATIONS
UAV

Unmanned System Ethernet Connectivity, UAV Ethernet Switch, UAS
